| Prezzo: | €14,25 Iva inclusa (22%) |
|---|---|
| Spese di trasporto: | € 5,80 Iva inclusa (22%) |
| Codice: | SHESH-PLUS1PM |
| Marca: | SHELLY |
| Modello: | SH-PLUS1PM |
| Disponibilitŕ: | Disponibile 2 |
| Quantitŕ: |

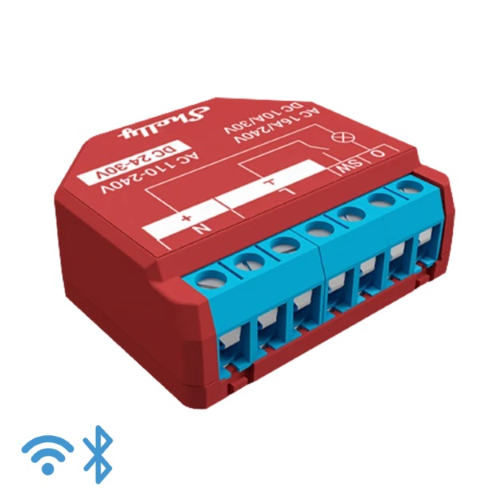

Shelly Plus 1PM
Relč intelligente Wi-Fi e Bluetooth, 1 canale 16A, per Automazione Domestica dei Dispositivi Elettrici. Luci e Controllo del Consumo di Corrente, Rosso
| Physical | ||
| Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in | |
| Weight: | 27 g / 0.95 oz | |
| Mounting: | Wall console | |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin | |
| Conductor cross section: | 0.5 to 1.5 mm˛ / 20 to 16 AWG | |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in | |
| Shell material: | Plastic | |
| Color: | Red | |
| Environmental | ||
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F | |
| Humidity | 30 % to 70 % RH | |
| Max. altitude | 2000 m / 6562 ft | |
| Electrical | ||
| Power supply: | 110 - 240 VAC / 24 - 30 VDC | |
| Power consumption: | < 1.2 W | |
| Output circuits ratings | ||
| Max switching voltage AC: | 240 V | |
| Max switching voltage DC: | 30 V | |
| Max switching current AC: | 16 A | |
| Max switching current DC: | 10 A | |
| Sensors, meters | ||
| Internal-temperature sensor: | Yes | |
| Voltmeter (AC) | Yes | |
| Ammeter (AC) | Yes | |
| Radio | ||
| RF band: | 2400 - 2495 MHz | |
| Max. RF power: | <20 dBm | |
| Wi-Fi protocol: | 802.11 b/g/n | |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors | (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 | |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors | (Depends on local conditions) |
| MCU | ||
| CPU: | ESP32 | |
| Flash: | 4 MB | |
| Firmware capabilities | ||
| Schedules: | 20 | |
| Webhooks (URL actions): | 20 with 5 URLs per hook | |
| Scripting: | Yes | |
| MQTT: | Yes | |
| CoAP: | No |
 |  |
| Terminals | Cables | ||
| I | Load circuit input terminal | L | Live (110 - 240 VAC) cable |
| O | Load circuit output terminal | + | 24 - 30 VDC positive cable |
| SW | Switch (controlling O) input terminal | N | Neutral cable |
| L | Live (110-240 V) terminal | GND | 24 - 30 VDC ground cable |
| N | Neutral terminal | ||
| + | 24 - 30 VDC positive terminal | ||
| 24 - 30 VDC ground terminal |
